- Product description: Bob Energy 7500psi mud gate valve is available in sizes 2" to 6" (50 mm to 150 mm) with butt-weld end or flanged end connections.
Engineered specifically for the high pressure requirements of deep well drilling, the Bob 7500 gate valve is chosen for the following drilling applications:
• Standpipe manifolds
• Pump manifold block valves
• High-pressure drilling-system block valves
• High-pressure frac service
7,500 Psi Mud Valves Butt Weld Ends
|
MUD GATE VALVE SIZE |
BORE DIAMETER, AT SEAT (A) |
END TO END (B)* |
CENTRELINE TO BASE (C) |
CENTRELINE TO TOP, MAX (D) |
HANDWHEEL DIA (E) |
WEIGHT |
|
2" x 2"SCH XXS |
2.00" |
14.00" |
3.25" |
11.88" |
14.00" |
54kg |
|
3" x 3" SCH XXS |
3.00" |
16.00" |
4.88" |
18.13" |
18.00" |
110kg |
|
4" x 3" SCH XXS |
3.00" |
16.00" |
4.88" |
18.13" |
18.00" |
110kg |
|
5" x 4" SCH XXS |
4.00" |
16.00" |
5.12" |
24.63" |
23.00" |
160kg |
|
6" x 5" SCH XXS |
5.00" |
17.88" |
5.75" |
30.64" |
26.00" |
270kg |

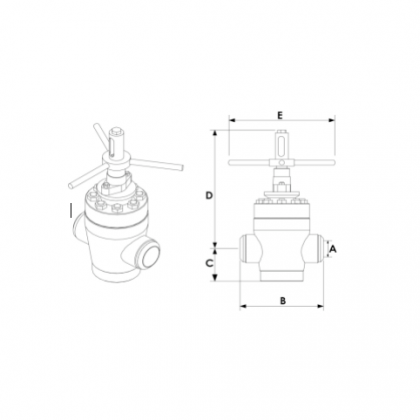

Table 9.3 from the Bob Energy Technical Data Book – 7,500 psi Butt Weld End Mud Valve Dimensions
