Long Sweep Manifold Fittings

Long Sweep Elbows (90)

Product description: API and ANSI Long Sweep Elbows manufactured in the UK. Bob offer a full range of long sweep elbows from 2″ to 6″, available with standard pressure ratings of 5,000 psi and 10,000 psi.
INQUIRY

Long Sweep Elbows (90)

API and ANSI Long Sweep Elbows manufactured in the UK. Bob offer a full range of long sweep elbows from 2″ to 6″, available with standard pressure ratings of 5,000 psi and 10,000 psi. A typical specification for our long sweep elbows is as follows:

Service Class: Standard or Sour Service
Material: AISI 4130
Weld Ends: ANSI B16.25
BW Tolerance: ANSI B16.9
C.W.P. : 7,500 or 10,000 PSI
Test Pressure: 11,250 or 15,000 PSI
Material Yield Strength: 85,000 PSI or more
Material Tensile Strength: 105,000 PSI or more

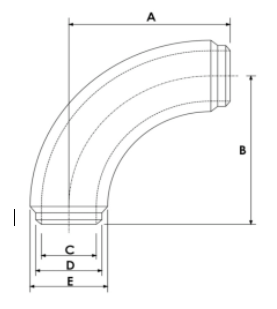

NB: Long Sweep Elbows (90)	A	B	C	D	E	WEIGHT (KG)
2" XXS	8	8	1.5	2.375	3.5	14
3" XXS	8	8	2.3	3.5	4.5	22
4" XXS	11	11	3.15	4.5	5.5	42
5" XXS	12	12	4.06	5.56	6.63	57
6" XXS	15	15	4.9	6.625	8	94
5.5" OD x 3.0" ID	12	12	3.06	5.5	6.63	62
6.75" OD x 5.0" ID	15	15	5	6.75	8	94
