Long Sweep Manifold Fittings

Long Sweep Full Flow Cross

Product description: Bob AISI 4130 Crosses are available in a full ranges of sizes and with standard pressure ratings of 5,000 psi and 10,000 psi. All Bob long sweep manifold fittings, including crosses, are manufactured
INQUIRY

Long Sweep Full Flow Cross

Bob AISI 4130 Crosses are available in a full ranges of sizes and with standard pressure ratings of 5,000 psi and 10,000 psi. All Bob long sweep manifold fittings, including crosses, are manufactured in the UK to stringent quality standards and certified by ABS or DNV as standard.

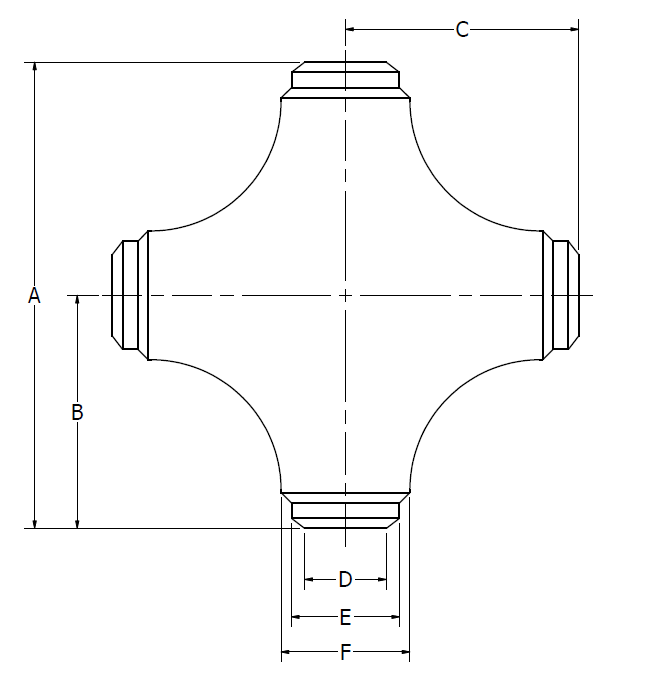

NB: Long Sweep Full Flow Cross	A	B	C	D	E	F	WEIGHT (KG)
2" XXS	16	8	8	1.5	2.37	4.5	59
3" XXS	16	8	8	2.3	3.5	4.5	60
4" XXS	22	11	11	3.15	4.5	5.56	81
5" XXS	24	12	12	4.06	5.56	6.63	111
6" XXS	30	15	15	4.9	6.63	7.75	243
5.5" OD x 3.0" ID	24	12	12	3.06	5.5	6.63	116
6.75 OD x 5.00" ID	30	15	15	5	6.75	7.75	243
