Choke Valves

External Sleeve Control Chokes

Product description: 3” to 6” Body sizes 2000, 3000, 5000, 10,000 API and ANSI classes up to 2500 Micrometer style indicator Non rotating lower stem enhanced stem packing life Stem packing set, using spring
INQUIRY

3” to 6” Body sizes

2000, 3000, 5000, 10,000 API and ANSI classes up to 2500

Micrometer style indicator

Non rotating lower stem enhanced stem packing life

Stem packing set, using spring energized lip seals

Bolted Bonnet w/ Metal to Metal Bonnet Seal

Static pressure balance seal acting on Flow Sleeve

Tungsten Carbide wear components on sleeve and cage

Pressure balanced trim reduces actuator loading, torque

ANSI Class V shut off (optional class VI)

Cartridge trim assembly interchangeable with plug and cage

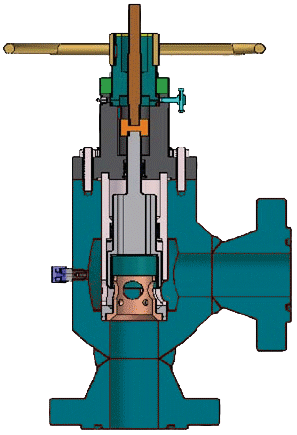

External Sleeve Trim
Large body annulus maximizes Cv and eliminates body erosion External Sleeve and Cage control choke trims provide maximum wear resistance and are used in high erosion production and high pressure service. Flow is directed through the ports in the trim to impinge on itself in the centre of the flow cage. The externally guided flow sleeve controls the opening and rate of flow. The flow sleeve shuts off flow by making contact on a seat ring outside of the flow cage, by keeping the seat surface away from high velocity flow, the seat integrity is maintained.
