Choke Valves

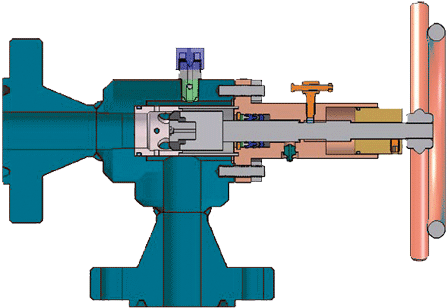

Model PC 25 Control Chokes

Product description: 2000, 3000, 5000, 10,000 API and ANSI classes up to 4500 Metal to Metal shut off in accordance with ANSI class IV Bolted bonnet with metal to metal seal for enhanced safety and reliability Dy
INQUIRY

	2000, 3000, 5000, 10,000 API and ANSI classes up to 4500
	Metal to Metal shut off in accordance with ANSI class IV
	Bolted bonnet with metal to metal seal for enhanced safety and reliability
	Dynamic seal (stem packing) uses spring energized lip seals
	Micrometer indicator barrel calibrated in /64” ‘Bean Size’
	Body/Bonnet Materials include, Carbon Steel, Alloy Steel, Stainless Steel and Duplex Stainless Steel
	Standard Trim, 96/64” with MEP flow profile
	Standard trim uses Plug and Cage design with enlarged body gallery to provide maximum resistance to erosion and flow capacity
	Standard end connections include flanges 2 1/16”, 2 9/16” 3 1/8”, 4 1/16” API and 2”, 3”, 4” ANSI
	Cartridge style trim installation uses no internal threads or special tools - easing field maintenance
