Choke Valves

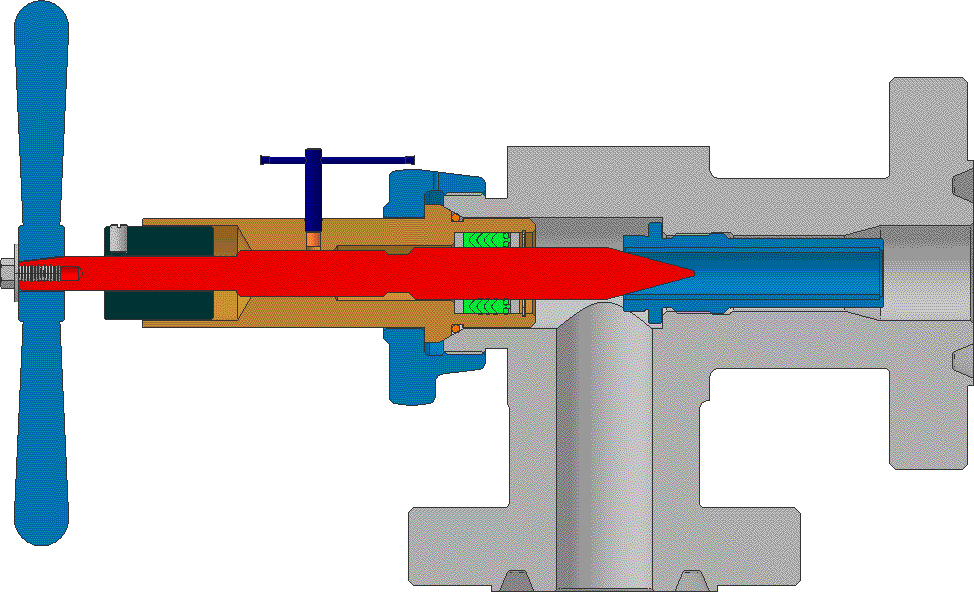

Needle and Seat Adjustable Chokes
- Product description: -- Pressure ratings; 2000 3000, 5000, 10,000, 15,000 API and ANSI classes up to 4500 -- 2", 3", 4", 5", 6" and larger sizes -- Field conversion kits to adjustable needle and seat, and cage type a
|
--
|
2000, 3000, 5000, 10000 API and ANSI classes up to 4500
|
|
--
|
Field conversion kits to positive, and cage trim control chokes
|
|
--
|
Field conversion kits to adjustable needle and seat, and cage type adjustable chokes
|
|
--
|
Bonnet nut with vent hole for safety during servicing
|
|
--
|
Dynamic seal (stem packing) uses spring energized lip seals
|
|
--
|
Micrometer indicator barrel calibrated in /64" 'Bean Size'
|
|
--
|
Body/Bonnet materials include, Carbon Steel, Alloy Steel, Stainless Steel and Duplex Stainless Steel
|
|
|
|
|
Control Choke Valve, Plug and Cage Choke, External Sleeve |
|
|
Nominal Body Size
|
End Connections
|
Trim size
|
|
||
|
2"
|
API 2 1/16", 2 9/16", 3 1/8"
ANSI Flanges 2", 3" |
1" (64/64")
1.5" (96/64") |
|
|
||
|
3"
|
API Flanges 3 1/8", 4 1/16"
ANSI Flanges 3", 4" |
2" (128/64")
50mm |
