Choke Valves

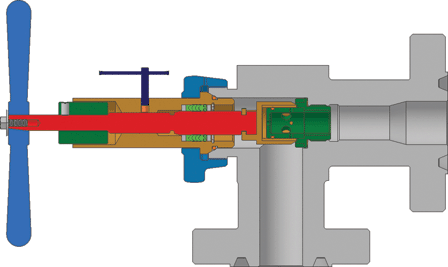

Model ES 20/25 Control Chokes

Product description: 2000, 3000, 5000, 10,000 API and ANSI classes up to 4500 Metal to Metal shut off in accordance with ANSI class V Field conversion kits to adjustable needle and seat, and positive chokes Bonne
INQUIRY

	2000, 3000, 5000, 10,000 API and ANSI classes up to 4500
	Metal to Metal shut off in accordance with ANSI class V
	Field conversion kits to adjustable needle and seat, and positive chokes
	Bonnet nut fitted with bleed hole for safety during servicing
	Dynamic seal (stem packing) uses spring energized lip seals
	Micrometer indicator barrel calibrated in /64” ‘Bean Size’
	Body/Bonnet Materials include, Carbon Steel, Alloy Steel, Stainless Steel and Duplex Stainless Steel
	Hammer union type bonnet nut for ease of field service
	Standard Trims, 64/64” and 96/64" with MEP flow profile
	Standard trim uses External Sleeve design with enlarged body gallery to provide maximum resistance to erosion
	Standard end connections include flanges 2 1/16”, 2 9/16” 3 1/8” API and 2”, 3” ANSI
